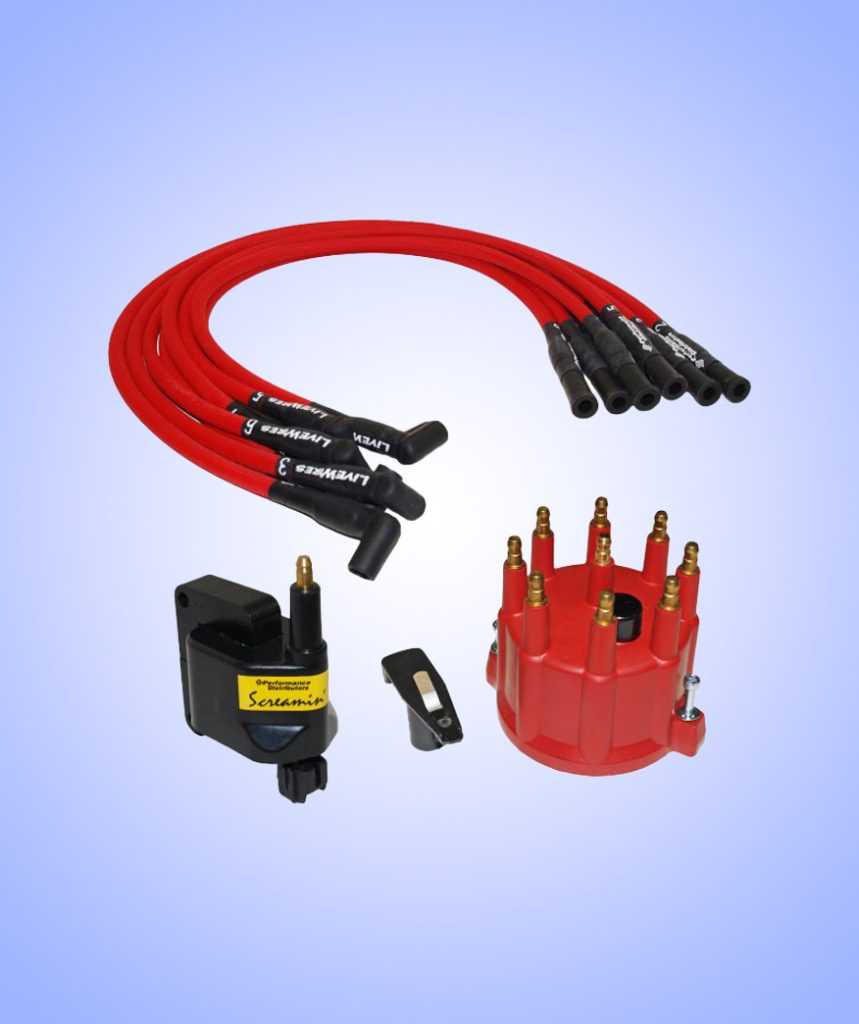

Ignition Systems & Cable Sets
ECT Autocore, which offers more than 900 different sets of ignition cables, is the largest manufacturer of ignition cables in Europe in terms of range, quality and number of types offered. Our extensive range covers 99% of the vehicles in Europe and neighbouring regions.
CONSTRUCTION
There are three basic types of ignition cables. These differ according to the material used to produce the conductive core and the way in which unwanted interference is suppressed. We offer all three basic types – resistive, copper and inductive core cables.
Resistive core ignition cables contain a core made of glass fibres impregnated with carbon and then coated with conductive silicone (SILICONE RESISTIVE).
RESISTIVE CORE / Set specifications & cable parameters
| designation TESLA | cable diameter | outer jacket | temperature range | ISO 3808 | cable colour |
|---|---|---|---|---|---|
| TxxxB | 7 mm | silikon | -40…+220°C | E | black |
| TxxxG | 8 mm | silikon | -40…+220°C | E | black |
| TxxxH | 7 mm | silikon | -40…+220°C | E | blue |
| TxxxS | 7 mm | silikon | -50…+250°C | F | blue |

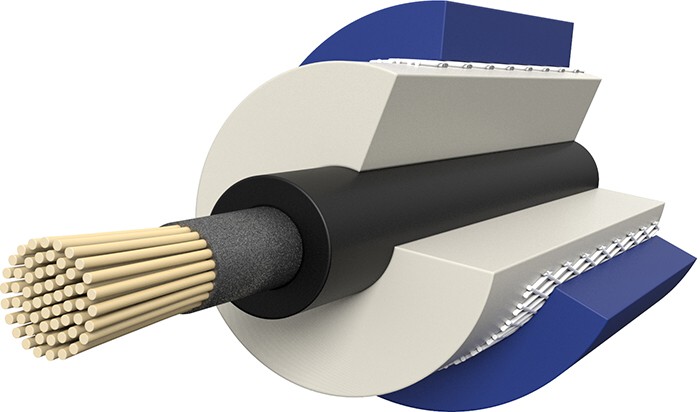

- The carbon-impregneted glass fibre bundle guarantees conductivity and increased tensile strength
- A layer of conductive latex ensures conductivity and fibre fixation
- A layer of conductive silicone acts as an electrically conductive joint and attenuation element for suppression
- The inner layer of insulation acts as electrical insulation
- Nylon tape braiding improves mechanical properties during bending
- The outer silicone jacket protects the core, including the inner insulation, from the effects of the working environment
TRIPLELINE SETS
The designation our SILICONE LEADS refers to the premium design of our ignition cables. The TRIPLELINE mark refers to the range of ignition cables offered for Eastern European cars. Under this range you will find three series with unique technical characteristics.
SILICONE PREMIUM
TRIPLE SILICONE LEADS with a special coating to extend the cable life. This design of ignition cable is unrivalled on the market.
SILICONE INDUCTIVE
TRIPLE SILICONE LEADS with 8 mm cable diameter to increase mechanical resistance and a low resistance inductive core for optimum performance. The design is especially for race car enthusiasts.
SILICONE BASIC
TRIPLE SILICONE LEADS in SILICONE BASIC offering high temperature resistance up to 220°C (class E according to DIN_ISO 3808) and optimal high voltage transmission thanks to a reinforced conductive core (1.6-2.0 mm).
